Name: GIGABYTE B650 UD AC AM5 ATX Motherboard
Brand: GIGABYTE
Price: 23999.00 BDT
Availability: InStock

GIGABYTE B650 UD AC AM5 ATX Motherboard

Save: 3671৳

GIGABYTE B650 UD AC AM5 ATX Motherboard

Price: TK 23,999
Regular Price: TK 27,670
Product id: 265
Stock: In Stock
Brand: GIGABYTE
Model: B650 UD AC

Based on 0 reviews. - Write a review

TK 23,999

TK 27,670

Ex Tax: TK 23,999

Qty

Add To Cart

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
Graphics Output: 2 x DisplayPort, 1 x HDMI port
Features: 1 x DisplayPort, 1 x HDMI

View more info

Specification

Basic Information
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	AMD B650
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Graphics
Graphics	supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
Memory
Slots	4 x DIMM
Supported Memory	7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Type	DDR5
Maximum Memory	supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Connector & Ports
Audio	3 x audio jacks
HDMI	1 x HDMI

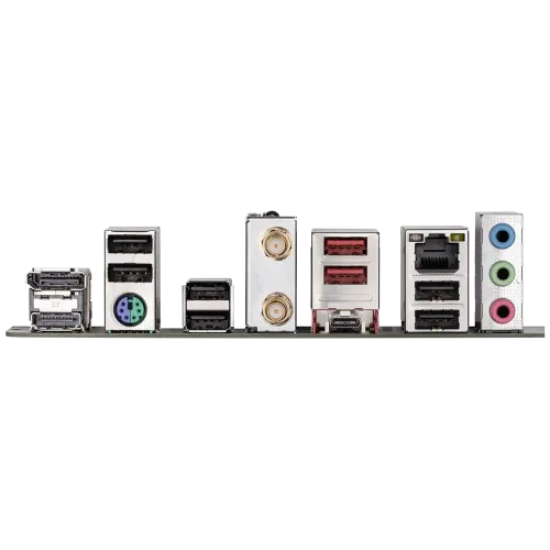

Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Display Ports (s)	1 x DisplayPort
Wireless Communication module	AzureWave Wi-Fi AW-CB304NF/AW-CB515NF (Realtek RTL8821CE) - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.)
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Other Features
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Details
Manufacturing Warranty	3 Years

Description

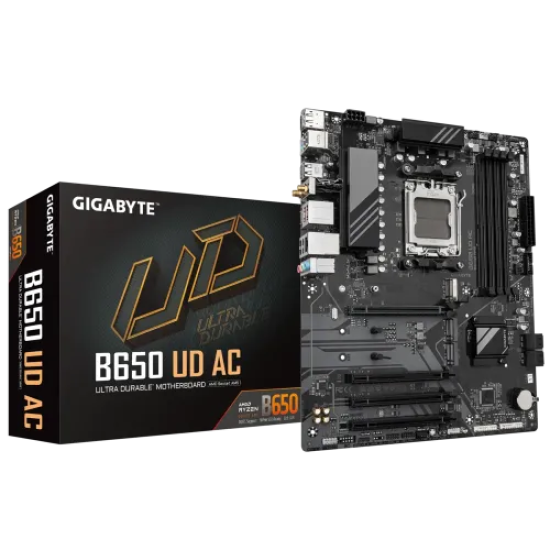

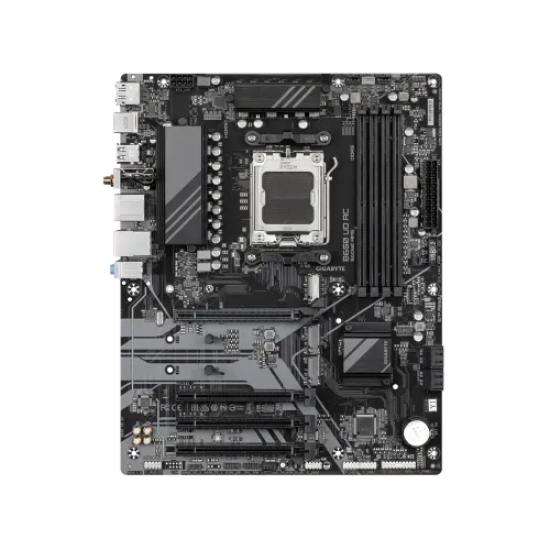

GIGABYTE B650 UD AC AM5 ATX Motherboard

The GIGABYTE B650 UD AC AM5 ATX Motherboard is a reliable and performance-focused board built for AMD Ryzen 7000 series processors. Designed with an AM5 socket and the AMD B650 chipset, it provides the perfect balance of performance, stability, and efficiency for both gaming and productivity.

This motherboard supports the latest DDR5 memory for faster speeds and improved multitasking, along with PCIe 4.0 slots for next-generation graphics cards and high-speed SSDs. It features dual M.2 slots with NVMe PCIe support, ensuring ultra-fast storage performance.

For connectivity, the GIGABYTE B650 UD AC comes with integrated WiFi and Bluetooth, ensuring seamless wireless networking, along with Gigabit LAN for stable wired connections. It also offers multiple USB ports, HDMI, and DisplayPort support for versatile connectivity options.

Engineered with GIGABYTE’s Ultra Durable design, the board uses high-quality components, efficient thermal solutions, and robust power delivery to ensure long-lasting performance under heavy workloads.

Whether you are a gamer, content creator, or power user, the GIGABYTE B650 UD AC AM5 ATX Motherboard provides excellent features and stability for your next desktop build.

Buy the GIGABYTE B650 UD AC AM5 ATX Motherboard from Tech Heaven IT.

In Bangladesh, you can get the original GIGABYTE B650 UD AC AM5 ATX Motherboard at Tech Heaven IT. We offer a wide range of GIGABYTE motherboards for gaming and productivity. Order online or visit our Tech Heaven IT shop to get yours at the best price. The GIGABYTE B650 UD AC AM5 ATX Motherboard comes with 3 years warranty.
