| Basic Information | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD B650 |
| Form Factor | Micro ATX Form Factor; 24.0cm x 22.5cm |
| Supported CPU | AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Graphics | |
| Graphics | Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Memory | |
| Slots | 4 DIMMs |
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Type | DDR5 |
| Maximum Memory | Up to 128 GB (64 GB single DIMM capacity) |
| Connector & Ports | |
| Audio | 3 x Audio jacks |
| D-Sub (s) | 1 x D-Sub |
| HDMI | 1x HDMI |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| USB (s) | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 2 x USB 2.0/1.1 ports available through the internal USB header |
| Wireless Communication module | Wireless Communication module AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Other Features | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |

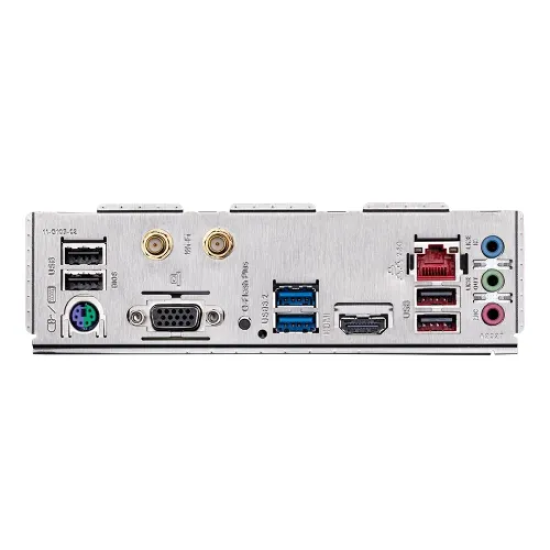

| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
| Warranty Details | |
| Manufacturing Warranty | 3 Years Warranty |

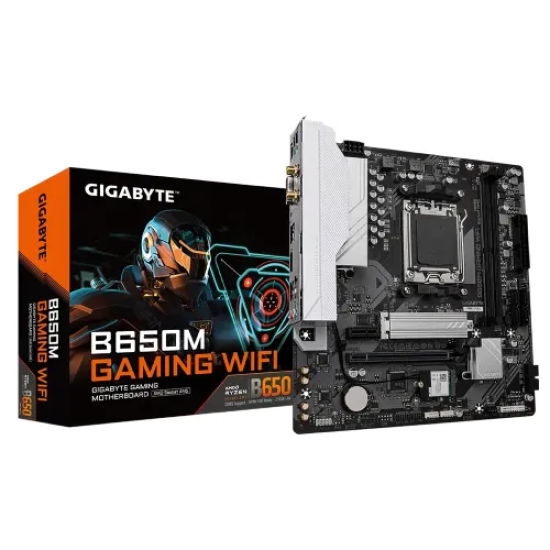

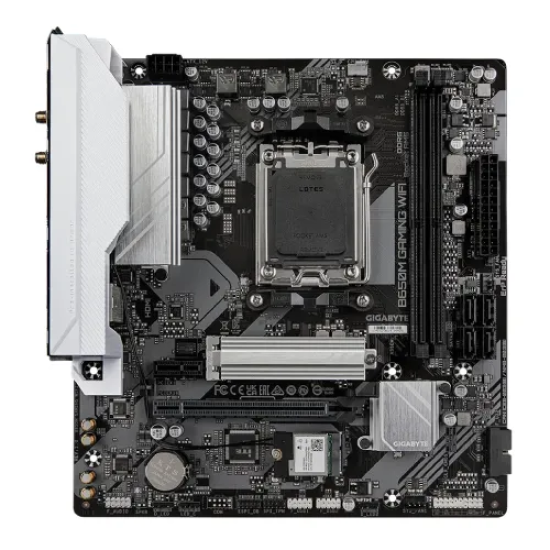

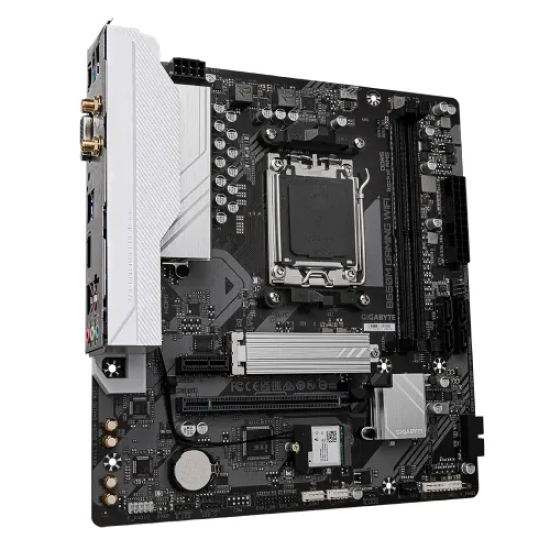

The GIGABYTE B650M GAMING WIFI is a high-performance Micro ATX AM5 motherboard designed for gamers and PC enthusiasts. Compatible with AMD Ryzen 7000, 8000, and 9000 series processors, it delivers fast and reliable performance for modern gaming and multitasking.
Featuring dual-channel DDR5 memory with AMD EXPO and Intel XMP support, this motherboard can reach speeds up to 6400 MT/s, ensuring smooth gameplay and efficient operation.
For connectivity and expansion, it offers 2.5GbE LAN, Wi-Fi 6E, HDMI, D-Sub, one PCIe 4.0 x4 M.2 slot, and four SATA 6Gb/s ports, providing versatile options for networking, display, and storage.
Smart Fan 6 technology maintains optimal temperatures through multiple sensors and hybrid fan headers, while Ultra Durable components ensure long-lasting reliability. User-friendly features like PCIe EZ-Latch and Q-Flash Plus make installation and BIOS updates simple, making this motherboard an excellent choice for building a future-proof gaming PC.
GIGABYTE B650M GAMING WIFI DDR5 AM5 Micro ATX Motherboard,available exclusively at Tech Heaven IT.
We offer 100% genuine products, reliable warranty, and fast delivery.
Order now and experience high-performance gaming with DDR5, PCIe 4.0, and Wi-Fi 6E support. Visit Tech Heaven IT today and get your motherboard in stock!
