- Price: TK 13,700
- Regular Price: TK 14,090
- Product id: 360
- Stock: In Stock
- Brand: GIGABYTE
- Model: B650M H
Key Features
- Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
- Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
- Graphics Output: 2 x DisplayPort, 1 x HDMI port
- Features: 1 x DisplayPort, 1 x HDMI
| Basic Information | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD B650 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1) |
| Graphics | |
| Graphics | supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Memory | |
| Slots | 2 x DIMM |
| Supported Memory | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Type | DDR5 |
| Maximum Memory | supporting up to 96 GB (48 GB single DIMM capacity) of system memory |
| Connector & Ports | |
| Audio | 3 x audio jacks |
| HDMI | 1 x HDMI |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| USB (s) | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| Display Ports (s) | 1 x DisplayPort |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Other Features | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Warranty Details | |
| Manufacturing Warranty | 3 Years |

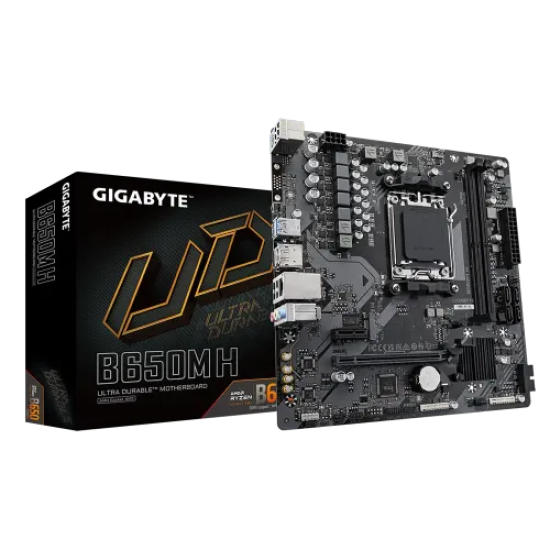

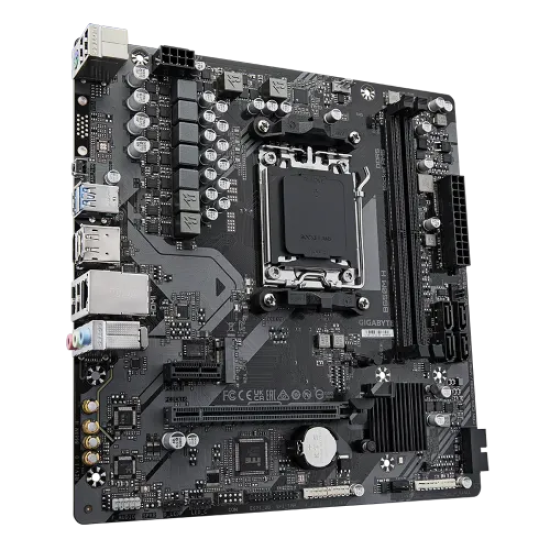

GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Motherboard Price in BD makes it an excellent choice for PC enthusiasts, gamers, and professionals in Bangladesh who want reliable performance and future-ready support. Equipped with the latest AMD AM5 socket, this motherboard is designed for AMD Ryzen 7000 Series processors, delivering exceptional speed, efficiency, and multitasking capability.
Supporting dual-channel DDR5 memory, the GIGABYTE B650M H ensures faster data transfer rates and stable system performance, making it ideal for gaming, content creation, and productivity tasks. It also comes with PCIe 4.0 expansion slots, providing high-speed graphics and storage performance for modern PC builds.
The motherboard features Smart Fan 6 technology for advanced cooling and temperature control, ensuring smooth and stable operation even under heavy workloads. High-quality audio capacitors deliver immersive sound quality, enhancing gaming and multimedia experiences.
Its Micro-ATX form factor allows for compact and mid-sized PC builds without sacrificing performance. With multiple USB ports, HDMI/DisplayPort support, and NVMe M.2 slots, the GIGABYTE B650M H offers versatile connectivity and expansion options.
Backed by GIGABYTE’s Ultra Durable design and a 3-year official warranty in Bangladesh, this motherboard guarantees long-term reliability and peace of mind for every user.
Availability and Usability
The GIGABYTE B650M H AM5 Motherboard is available in Bangladesh through Tech Heaven IT with authentic warranty support. Perfect for gaming rigs, workstation PCs, and home/office setups, it offers powerful performance at a competitive price.
Key Features
-
AMD AM5 Socket – Compatible with Ryzen 7000 Series processors.
-
Dual Channel DDR5 Memory – High-speed performance for multitasking.
-
PCIe 4.0 Expansion Slots – Supports latest graphics and storage devices.
-
Smart Fan 6 Technology – Efficient cooling under heavy load.
-
NVMe M.2 Storage Support – Ultra-fast SSD performance.
-
High-Quality Audio Capacitors – Clear and immersive sound.
-
Micro-ATX Form Factor – Compact design with premium features.
GIGABYTE B650M H Motherboard Price in Bangladesh
The GIGABYTE B650M H AM5 Motherboard Price in BD is highly competitive, making it a top choice for gamers and professionals. Tech Heaven IT provides genuine products, official warranty, and fast delivery across Bangladesh.
GIGABYTE B650M H Review
The GIGABYTE B650M H stands out with its AM5 socket, DDR5 memory support, and PCIe 4.0 expansion, ensuring smooth gaming, multitasking, and future-ready performance. Its Micro-ATX design makes it suitable for budget-friendly yet powerful PC builds in Bangladesh.
Why Choose the GIGABYTE B650M H AM5 Motherboard from Tech Heaven IT
Purchasing from Tech Heaven IT guarantees:
-
100% genuine GIGABYTE B650M H AM5 Motherboard
-
3-year official warranty
-
Best & competitive price in Bangladesh
-
Fast delivery nationwide
-
Trusted after-sales support
With Tech Heaven IT, you get a reliable, future-ready, and high-performance motherboard at the best price in Bangladesh.
