| Basic Information | |
| Chipset | AMD B650 |
| Form Factor | mATX 243.84mmx243.84mm |
| Supported CPU | Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors Socket AM5 |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Graphics | |
| Graphics | Support HDMITM 2.1, maximum resolution of 4K 60Hz* Supports DP 1.4, maximum resolution of 4K 60Hz* Support VGA, maximum resolution of 1920x1200 60Hz* |
| Memory | |
| Slots | 4 DIMMs |
| Supported Memory | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Type | DDR5 |
| Maximum Memory | 192GB |
| Connector & Ports | |
| Audio | 1x Front Audio (JAUD) Back Audio connectors |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| LAN Port (s) | Realtek 8125BG 2.5G LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
| VGA (s) | 1x VGA |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Other Features | |
| Special Features | 4x EZ Debug LED |
| Warranty Details | |
| Warranty | 03-year Warranty |

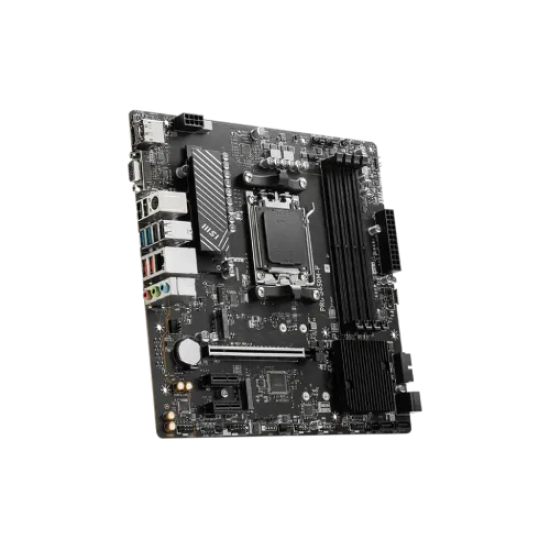

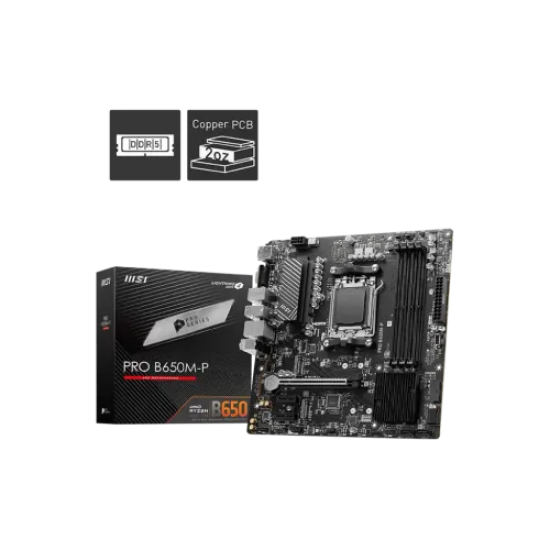

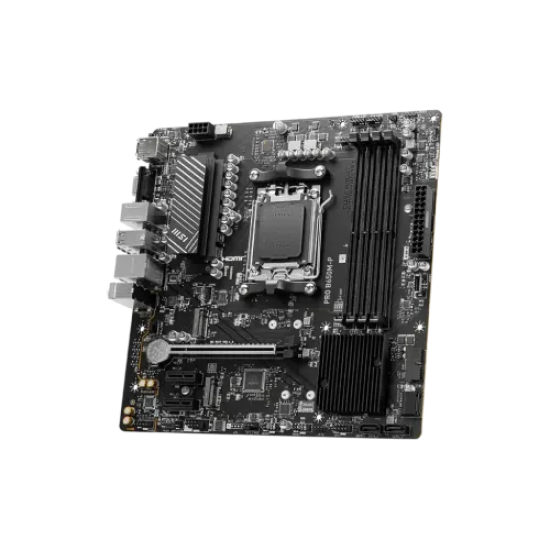

MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard
The MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard is built for stable and efficient performance in modern desktop systems. It supports AMD Ryzen processors and dual-channel DDR4 memory, delivering smooth multitasking and reliable operation for both work and gaming. With PCIe 4.0 and M.2 support, this motherboard provides high-speed data transfer and reduced loading times for storage devices and graphics cards.
Designed for durability, the B550M Pro-VDH features Core Boost technology and a robust power delivery system for stable performance under heavy workloads. It also includes Audio Boost for clear sound and enhanced multimedia experiences. Compact and feature-rich, this Micro-ATX motherboard is an excellent choice for building a high-performance AMD-powered PC.
Buy the MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard at the best price in Bangladesh from Tech Heaven IT. We provide authentic MSI motherboards with 3 Years Warranty. Order online or visit Tech Heaven IT to get your next-generation AMD-powered PC build started today.
