| Basic Information | |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 Processor socket LGA1700 |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
| Graphics | |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Memory | |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| RAM Type | DDR4 |
| Maximum Memory | Support up to 64GB |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| Display Ports (s) | 1x DisplayPort |
| VGA (s) | 1x VGA port |
| Warranty Details | |
| Warranty | 3 years |

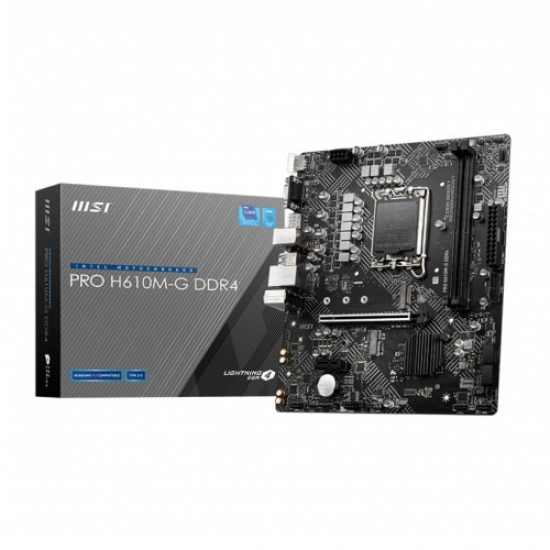

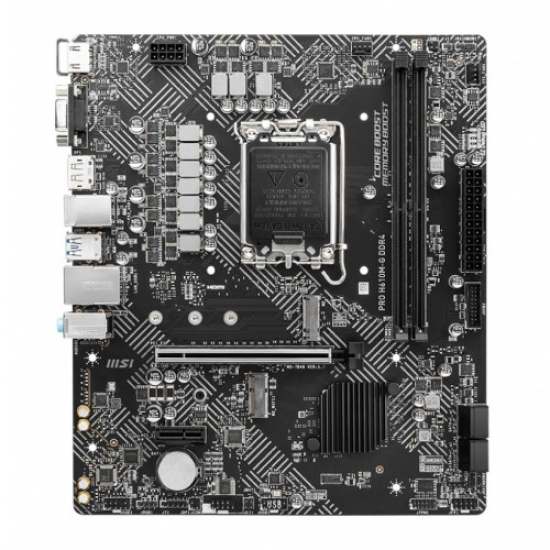

The MSI PRO H610M-G DDR4 Micro-ATX Motherboard is engineered for Intel’s latest processors, supporting 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron CPUs on the LGA1700 socket. Designed for performance and stability, this motherboard comes with Dual Channel DDR4 memory support across 2 DIMM slots for smooth multitasking and system reliability.
Featuring a 6+1+1 Hybrid Digital VRM design with solid capacitors, the motherboard delivers consistent power to your CPU while minimizing voltage fluctuations. The MSI Lightning Gen 4 PCIe slots provide ultra-fast data transfer up to 64GB/s and are backward compatible with older PCIe versions. Steel Armor reinforcement ensures your graphics cards remain stable even under heavy loads.
For networking, it includes the Realtek 8118 LAN chip, prioritizing bandwidth automatically for gaming and applications to ensure smooth, lag-free connectivity. The ATX 12V 8-pin power connectors maintain a stable power supply during CPU-intensive tasks.
Cooling is handled efficiently with Smart Fan 6, featuring multiple temperature sensors and hybrid fan headers with FAN STOP functionality. The motherboard supports multiple displays via HDMI and D-Sub ports, making it versatile for both gaming and professional setups.
Buy MSI PRO H610M-G DDR4 Micro-ATX Motherboard from Tech Heaven IT
In Bangladesh, get the original MSI PRO H610M-G DDR4 Micro-ATX Motherboard at the best price from Tech Heaven IT. Order online or visit our shop Tech Heaven IT to purchase this high-performance motherboard. Comes with a 3-year warranty for peace of mind.
