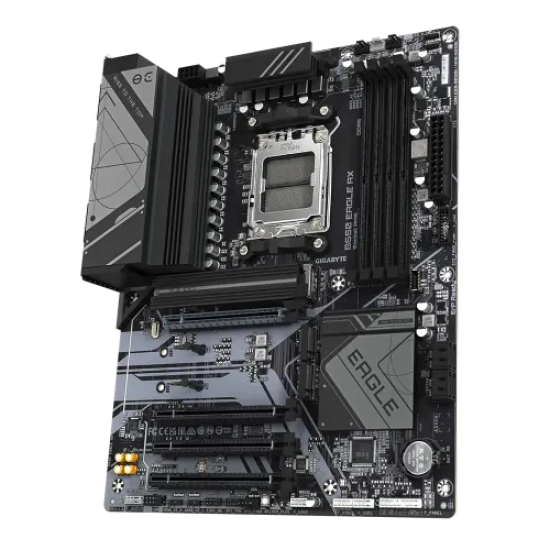

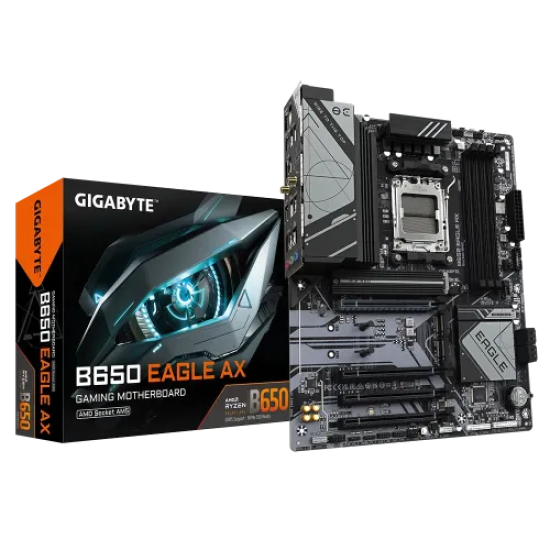

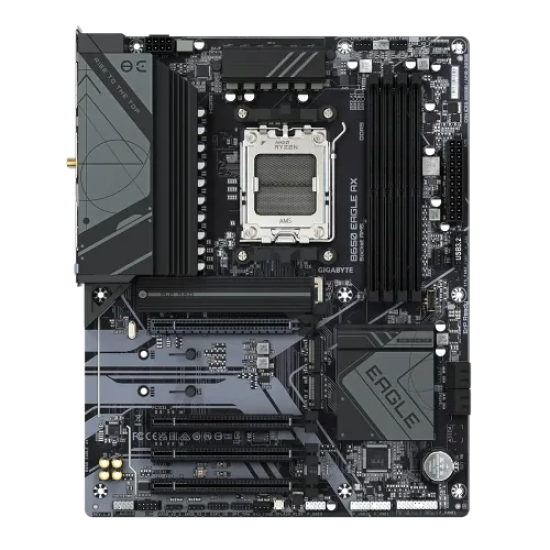

GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard

GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
  • Regular Price:  TK 27,650
  • Product id:  253
  • Stock: In Stock
  • Brand: GIGABYTE
  • Model: B650 EAGLE AX
Based on 0 reviews. - Write a review
TK 27,650
Ex Tax: TK 27,650
Add To Cart
Buy Now Add to Compare
Add to Wish List Compare this Product

Key Features

  • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
  • Graphics Output: 1x Display Port, 1 x HDMI
  • Features: Realtek GbE LAN chip & Realtek Wi-Fi 6E RTL8852CE
View more info
Specification
Basic Information
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD B650
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Graphics
Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Memory
Slots 4 DIMMs
Supported Memory 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Type DDR5
Maximum Memory 192GB
Connector & Ports
Audio 3 x Audio jacks
HDMI 1x HDMI
Internal I/O Ports Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s) CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Display Ports (s) 1 x DisplayPorts
Wireless Communication module Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Other Features
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Warranty Details
Manufacturing Warranty 3 Years
Description

GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard

The GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard is engineered to deliver stable performance, advanced features, and long-term reliability for modern PC builds. Designed for AMD Ryzen 7000 series processors, it supports the latest DDR5 memory technology for faster speeds and improved multitasking. This ATX motherboard comes equipped with PCIe 4.0 expansion slots, ensuring smooth performance for graphics cards and high-speed storage devices.

With built-in Wi-Fi 6 and Realtek LAN, you’ll experience seamless online gaming, low latency, and reliable connectivity. The motherboard also includes multiple M.2 slots for NVMe SSDs, USB Type-C support, and enhanced power design to handle demanding workloads. GIGABYTE’s signature Ultra Durable components and advanced cooling solutions ensure maximum stability under heavy usage.

Whether you’re a gamer, content creator, or enthusiast, the GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard is an excellent choice for building a powerful and future-ready PC.

Buy the GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard from Tech Heaven IT.
In Bangladesh, you can get the original GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard at Tech Heaven IT. We have a wide collection of the latest GIGABYTE motherboards for desktop PCs. Order online or directly visit our Tech Heaven IT shop to get yours at the best price. The GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard comes with 3 years warranty.
