- Price: TK 11,900
- Regular Price: TK 12,910
- Product id: 361
- Stock: In Stock
- Brand: GIGABYTE
- Model: B450M DS3H WIFI
Key Features
- Supported Processor: AMD Ryzen 5000/ 5000 G/ 3rd Gen / 2nd Gen / 1st Gen/ 2nd Gen
- Supported Memory: Dual Channel DDR4, 4 DIMMs
- Intel Dual Band 802.11ac WIFI & BT 4.2
- High Quality Audio Capacitors
| Basic Information | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD B450 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Supported CPU | AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors (Please refer "CPU Support List" for more information.) |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) Actual support may vary by CPU. Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) |
| Graphics | |
| Graphics | Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon |
| Memory | |
| Slots | 4 x DDR4 DIMM sockets |
| Supported Memory | Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Type | Dual channel memory architecture |
| Connector & Ports | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) Actual support may vary by CPU. Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |

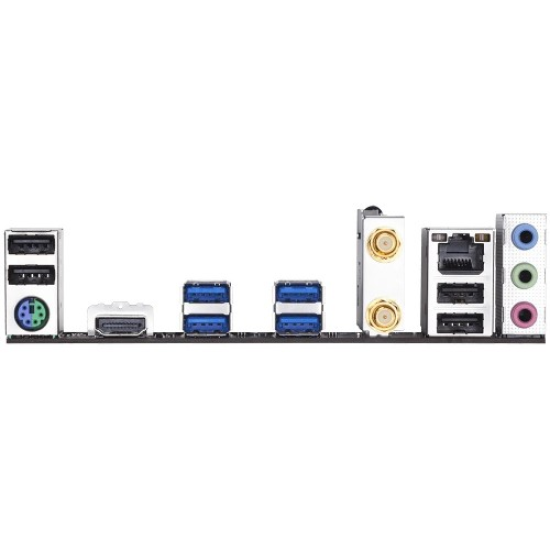

| USB (s) | CPU: 4 x USB 3.1 Gen 1 ports on the back panel Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Wireless Communication module | Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate Actual data rate may vary depending on environment and equipment. |
| Other Features | |
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
| Special Features | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Warranty Details | |
| Manufacturing Warranty | 03 years |

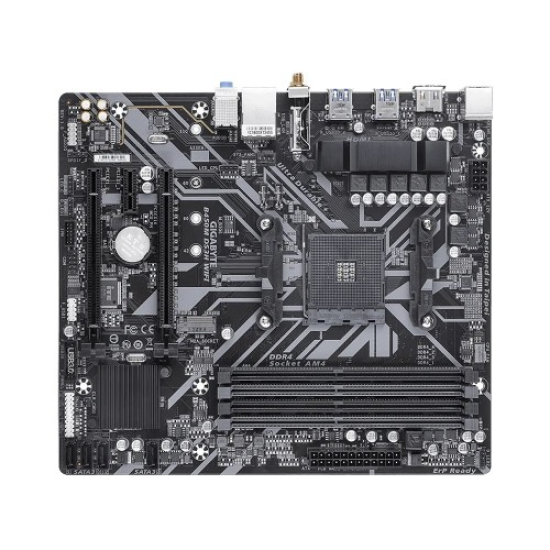

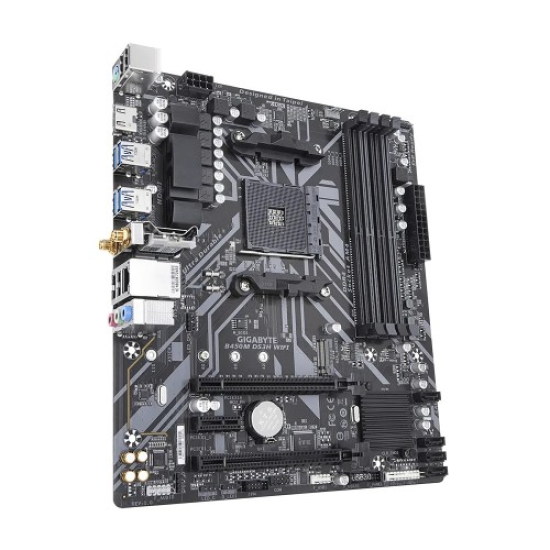

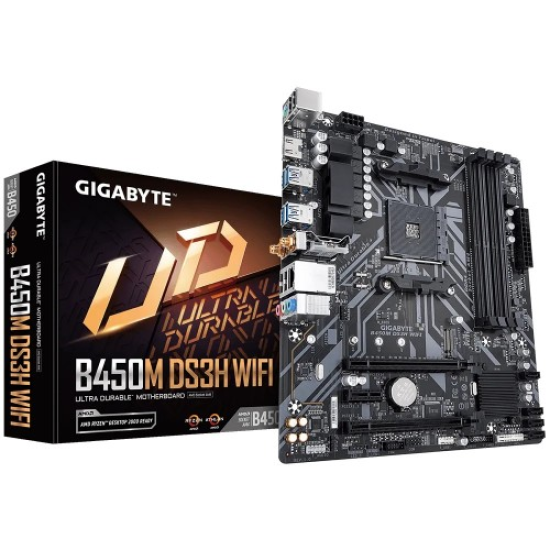

GIGABYTE B450M DS3H WIFI AM4 Micro ATX Motherboard
GIGABYTE B450M DS3H WIFI AM4 Motherboard Price in BD makes it a reliable choice for PC builders, gamers, and professionals in Bangladesh who seek affordable yet high-performance motherboards. Featuring the AM4 socket, it is compatible with AMD Ryzen 1000, 2000, 3000, and 5000 Series processors, delivering smooth multitasking, gaming, and productivity performance.
With support for dual-channel DDR4 memory, the B450M DS3H WIFI ensures stable and efficient system performance, making it perfect for gaming, office work, and multimedia tasks. The motherboard includes PCIe 3.0 slots for graphics and storage expansion, along with integrated Wi-Fi connectivity for seamless online performance without additional adapters.
Equipped with Smart Fan 5 technology, it provides advanced cooling and temperature control to maintain stable performance during heavy workloads. High-quality audio capacitors ensure clear and immersive sound, enhancing gaming and multimedia experiences.
Its Micro ATX form factor allows it to fit in compact PC cases while still offering essential connectivity options, including multiple USB ports, HDMI/DVI outputs, and M.2 NVMe slots for ultra-fast storage solutions.
Backed by GIGABYTE’s Ultra Durable design and a 3-year official warranty in Bangladesh, this motherboard guarantees reliability and peace of mind for every user.
Availability and Usability
The GIGABYTE B450M DS3H WIFI AM4 Micro ATX Motherboard is available in Bangladesh through Tech Heaven IT with authentic warranty support. Ideal for budget gaming builds, home PCs, and office setups, it delivers powerful performance at a competitive price.
Key Features
-
AM4 Socket – Supports AMD Ryzen 1000 to 5000 Series processors.
-
Dual Channel DDR4 Memory – Efficient performance for multitasking.
-
PCIe 3.0 Slots – Supports graphics and storage expansion.
-
Smart Fan 5 Technology – Optimized cooling for stable usage.
-
Wi-Fi Connectivity – Integrated wireless internet support.
-
M.2 NVMe Storage Support – Ultra-fast SSD performance.
-
High-Quality Audio Capacitors – Clear and immersive sound.
-
Micro ATX Form Factor – Compact design with essential features.
GIGABYTE B450M DS3H WIFI Motherboard Price in Bangladesh
The GIGABYTE B450M DS3H WIFI AM4 Motherboard Price in BD is affordable yet high-performing, making it an excellent choice for gamers, students, and professionals. Tech Heaven IT provides genuine products, official warranty, and fast delivery across Bangladesh.
GIGABYTE B450M DS3H WIFI Review
The GIGABYTE B450M DS3H WIFI stands out for its AM4 compatibility, DDR4 memory support, PCIe 3.0 slots, and integrated Wi-Fi, ensuring smooth gaming, multitasking, and reliable connectivity. Its Micro ATX design makes it ideal for budget-friendly builds without compromising on essential features.
Why Choose the GIGABYTE B450M DS3H WIFI AM4 Motherboard from Tech Heaven IT
Purchasing from Tech Heaven IT guarantees:
-
100% genuine GIGABYTE B450M DS3H WIFI AM4 Motherboard
-
3-year official warranty
-
Best & competitive price in Bangladesh
-
Fast delivery nationwide
-
Trusted after-sales support
With Tech Heaven IT, you get a reliable, compact, and high-performance motherboard at the best price in Bangladesh.
