Name: GIGABYTE B760M H DDR4 mATX Motherboard
Brand: GIGABYTE
Price: 13700.00 BDT
Availability: InStock

GIGABYTE B760M H DDR4 mATX Motherboard

Save: 1100৳

GIGABYTE B760M H DDR4 mATX Motherboard

Price: TK 13,700
Regular Price: TK 14,800
Product id: 481
Stock: In Stock
Brand: GIGABYTE
Model: B760M H DDR4

Based on 0 reviews. - Write a review

TK 13,700

TK 14,800

Ex Tax: TK 13,700

Qty

Add To Cart

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2 x DDR4 slots, up to 64GB, 3200 MHz
- Graphics Output: 1 x HDMI port, 1 x D-Sub port
- Networking: Realtek GbE LAN chip for stable connectivity
- Form Factor: Micro ATX, compact and versatile design

View more info

Specification

Basic Information
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel B760 Express Chipset
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
Supported CPU	LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Memory
Slots	2
Supported Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	DDR4
Maximum Memory	up to 64GB (32 GB single DIMM capacity) of system memory
Connector & Ports
Audio	3 x audio jacks
D-Sub (s)	1x D-Sub
HDMI	1x HDMI

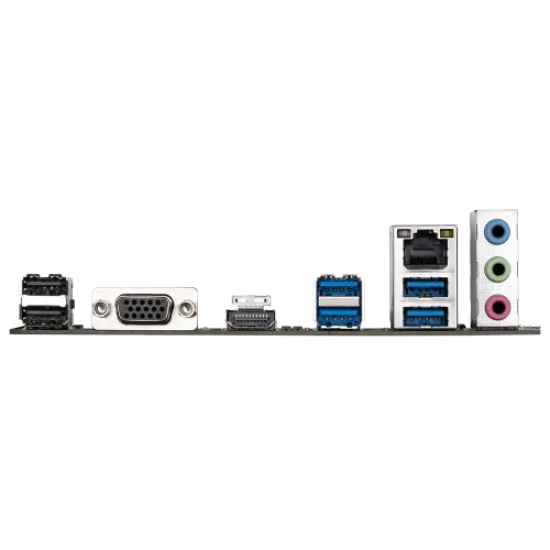

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB (s)	Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Other Features
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash
Warranty Details
Manufacturing Warranty	Manufacturing Warranty

Description

GIGABYTE B760M H DDR4 Micro ATX Motherboard

The GIGABYTE B760M H DDR4 Micro ATX Motherboard is designed for gamers, content creators, and professionals in Bangladesh seeking reliable performance and expandability. Supporting 12th, 13th, and 14th Gen Intel Core Processors with the LGA1700 socket, it ensures smooth multitasking, gaming, and productivity.

Equipped with 2 DDR4 RAM slots supporting up to 128GB memory and speeds up to 5333MHz (O.C.), it delivers efficient performance for modern applications. The motherboard offers versatile graphics output with 1 HDMI and 1 DisplayPort, while the Realtek 2.5GbE LAN chip provides stable and fast networking connectivity.

Its Micro ATX form factor includes expansion slots, PCIe support, and storage options for both SATA and NVMe drives, making it a compact yet powerful solution for PC builds.

Availability and Usability
The GIGABYTE B760M H DDR4 Micro ATX Motherboard is available in Bangladesh through trusted retailers like Tech Heaven IT. With its DDR4 memory support, reliable LAN, and flexible expansion options, it is ideal for gaming, office work, and multimedia usage.

Price in Bangladesh
This motherboard offers an excellent price-to-performance ratio. Tech Heaven IT ensures authentic GIGABYTE products with official warranty and dependable after-sales service, providing peace of mind for buyers.

Review
The GIGABYTE B760M H DDR4 motherboard delivers a solid balance of performance, stability, and expandability. With support for Intel 12th–14th Gen CPUs, DDR4 memory, and fast storage options, it is suitable for gamers, professionals, and PC enthusiasts.

Why is this Product Different?
It stands out with support for DDR4 up to 128GB, dual graphics outputs, and a high-speed 2.5GbE LAN chip. Compact, reliable, and versatile, it suits a wide range of computing needs.
