- Price: TK 9,999
- Regular Price: TK 11,000
- Product id: 488
- Stock: In Stock
- Brand: GIGABYTE
- Model: H610M K DDR4
Key Features
- Supported CPU: 12th, 13th, and 14th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4 slots, up to 64GB, 3200MHz
- Graphics Output: 1x HDMI port, 1x D-Sub port
- Networking: Realtek GbE LAN chip for stable connectivity
- Form Factor: Micro ATX
| Basic Information | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | Intel H610 Express Chipset |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Memory | |
| Slots | 2 x DIMM sockets |
| Supported Memory | Support for 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| Maximum Memory | supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| Connector & Ports | |
| HDMI | 1 x HDMI port |

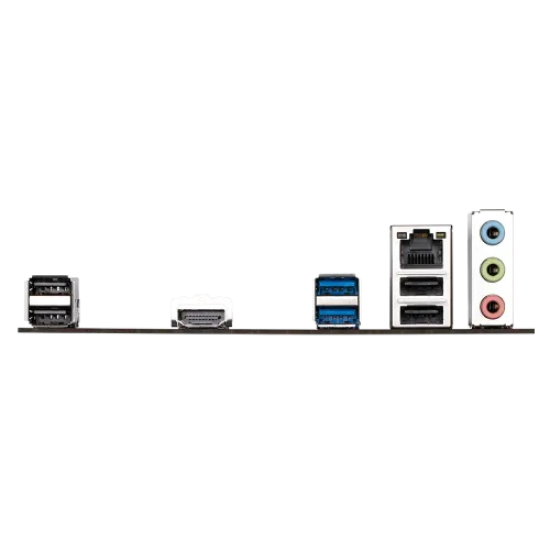

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Other Features | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Features | iTE I/O Controller Chip |
| Warranty Details | |
| Manufacturing Warranty | 3 years Warranty |

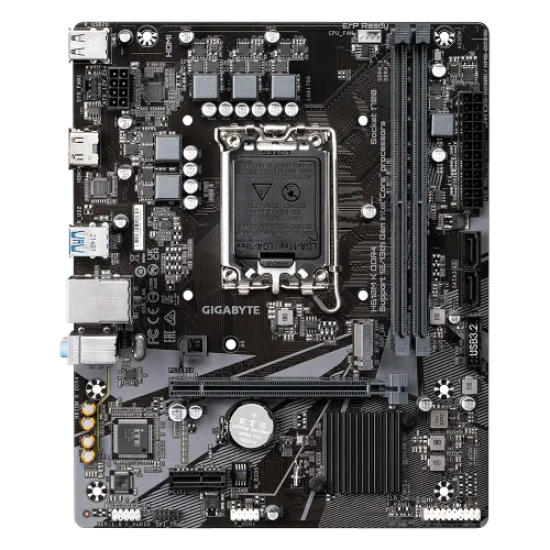

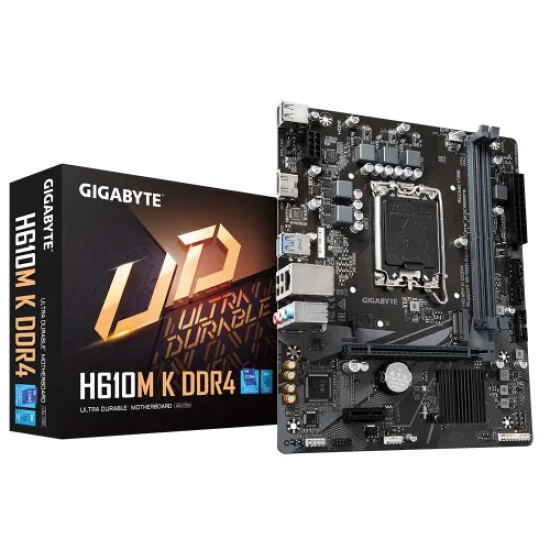

GIGABYTE H610M K DDR4 Micro ATX Motherboard
The GIGABYTE H610M K DDR4 Micro ATX Motherboard is designed for modern PC builders in Bangladesh, delivering stable performance, essential connectivity, and DDR4 memory support. Compatible with 12th, 13th, and 14th Gen Intel Processors via the LGA1700 socket, it ensures smooth multitasking, gaming, and productivity.
Featuring 2 DDR4 RAM slots supporting up to 64GB at 3200MHz, it provides reliable memory performance for efficient system operation. Graphics options include 1 HDMI port and 1 D-Sub port for versatile display connectivity, while the Realtek GbE LAN chip ensures stable networking. Its Micro ATX form factor allows easy installation in compact cases without compromising essential features.
Availability and Usability:
The GIGABYTE H610M K DDR4 Micro ATX Motherboard is available in Bangladesh through trusted retailers like Tech Heaven IT. With DDR4 memory support, multiple display outputs, and stable LAN, it’s suitable for gamers, professionals, and general users seeking reliable performance.
Price in Bangladesh:
Offering a balanced combination of features and affordability, Tech Heaven IT provides genuine GIGABYTE products with verified warranty and reliable after-sales support, making it a secure choice for Bangladeshi users.
Review:
The H610M K DDR4 delivers DDR4 memory support, LGA1700 CPU compatibility, and versatile graphics outputs. Its Micro ATX design is ideal for compact builds, ensuring smooth multitasking, gaming readiness, and overall reliability.
Why is this Product Different?
This motherboard stands out with DDR4 memory support, dual graphics outputs (HDMI and D-Sub), and stable networking, all packed into a compact Micro ATX design at an affordable price—perfect for both beginners and advanced users.
